Fastapi-Vue3-Admin

A modern, open-source, full-stack integrated rapid development platform for mid - and back - end systems

If you like this project, please give it a ⭐️ to show your support!

English | Chinese

📘 Project Introduction (Author: @1014TaoTao)

Fastapi-Vue3-Admin is a completely open-source, highly modular, and technologically advanced modern rapid development platform. Its aim is to help developers efficiently build high-quality enterprise-level mid - and back - end systems. This project adopts a front - end and back - end separation architecture, integrating the Python back - end framework FastAPI and the mainstream front - end framework Vue3 to achieve unified development across multiple terminals, providing a one - stop out - of - the - box development experience.

Original Design Concept: With modularity and loose coupling at its core, it pursues rich functional modules, simple and easy - to - use interfaces, detailed development documentation, and convenient maintenance methods. By unifying frameworks and components, it reduces the cost of technology selection, follows development specifications and design patterns, builds a powerful code hierarchical model, and comes with comprehensive local Chinese support. It is specifically tailored for team and enterprise development scenarios.

fastapi_vue3_admin
├─ backend        # Backend project
├─ frontend       # Frontend project
├─ devops         # Deployment project
├─ docker-compose.yaml # Deployment file
├─ start.sh       # One-click deployment script
├─ LICENSE        # License agreement
|─ README.en.md   # English documentation
└─ README.md      # Chinese documentation

✨ Core Highlights

Feature	Description
🔭 Rapid Development	A completely open-source modern rapid development platform designed to help developers efficiently build high-quality mid- and back-end systems.
🌐 Full-stack Integration	Front-end and back-end separation, integrating Python (FastAPI) + Vue3 for multi-terminal development.
🧱 Modular Design	Highly decoupled system functions, facilitating easy expansion and maintenance.
⚡️ High-performance Asynchronous	Uses the FastAPI asynchronous framework + Redis cache to optimize API response speed.
🔒 Secure Authentication	Supports the JWT OAuth2 authentication mechanism to ensure system security.
📊 Permission Management	The RBAC model enables fine-grained permission control at the menu, button, and data levels.
🚀 Rapid Deployment	Supports one-click deployment with Docker/Docker Compose/Nginx.
📄 Developer-friendly	Provides comprehensive Chinese documentation, a Chinese interface, and a visual toolchain to reduce the learning curve.
🚀 Quick Access	Based on mainstream front-end technology stacks such as Vue3, Vite5, Pinia, and ElementPlus, it's ready to use out of the box.

🛠️ Technology Stack Overview

Type	Technology Selection	Description
Backend Framework	FastAPI / Uvicorn / Pydantic 2.0 / Alembic	A modern, high-performance asynchronous framework with enforced type constraints and data migration capabilities.
ORM	SQLAlchemy 2.0	A powerful ORM library.
Scheduled Tasks	APScheduler	Easily implement scheduled tasks.
Authentication	PyJWT	Implement JWT authentication.
Frontend Framework	Vue3 / Vite5 / Pinia / TypeScript	Quickly develop Vue3 applications.
UI Library	ElementPlus	Quickly develop beautiful UI components.
Database	MySQL / MongoDB	Powerful databases.
Cache	Redis	A powerful caching database.
Documentation	Swagger / Redoc	Automatically generate API documentation.
Deployment	Docker / Nginx / Docker Compose	Quickly deploy projects.

📌 Built-in Modules

Module Name	Sub-module Name	Description
Dashboard	Workbench, Analysis Page	Entry for commonly used functions
System Management	Includes sub-modules such as menu, department, position, role, user, log, configuration, announcement, dictionary, and task	Main system functions
Monitoring Management	Online users, server monitoring, cache monitoring	System monitoring and management functions
Public Management	Interface management, document management	Project interface documentation

🍪 Demo Environment

Official website: https://service.fastapiadmin.com
Web address: https://service.fastapiadmin.com/web
App address: https://service.fastapiadmin.com/app
Admin account: admin Password: 123456
Demo account: demo Password: 123456

👷 Installation and Usage

Version Information

Type	Technology Stack	Version
Backend	Python	>=3.10
Backend	FastAPI	0.109
Frontend	Node.js	>= 20.0 (It is recommended to use the latest version.)
Frontend	npm	16.14
Frontend	Vue3	3.3
Database	MySQL	8.0 (It is recommended to use the latest version.)
Middleware	Redis	7.0 (It is recommended to use the latest version.)

Get Code

# Clone the code to your local machine
git clone https://gitee.com/tao__tao/fastapi_vue3_admin.git
或
git clone https://github.com/1014TaoTao/fastapi_vue3_admin.git

Local Backend Start

# Enter the backend project directory
cd backend
# Install dependencies
pip3 install -r requirements.txt
# Start the backend service
python3 main.py run
or
python3 main.py run --env=dev
# Generate migration files
python3 main.py revision "Initial migration" --env=dev (default is dev if not specified)
# Apply migrations
python3 main.py upgrade --env=dev (default is dev if not specified)

Local Frontend Start

# Enter the frontend project directory
cd frontend
# Install dependencies
pnpm install
# Start the frontend service
pnpm run dev
# Build the frontend and generate the `frontend/dist` directory
pnpm run build

Local App H5 Start

# Enter the fastapp project directory
cd fastapp
# Install dependencies
pnpm install
# Start the fastapp service
pnpm run dev:h5
# Build the fastapp and generate the `fastapp/dist/build/h5` directory
pnpm run build:h5

Local Project Website Start

# Enter the fastdocs project directory
cd fastdocs
# Install dependencies
pnpm install
# Run the documentation project
pnpm run docs:dev
# Build the documentation project and generate the `fastdocs/dist` directory
pnpm run docs:build

Local Access Address

Project official website address: http://localhost:5180
Web frontend address: http://localhost:5180/web
App frontend address: http://localhost:5180/app
Admin account: admin Password: 123456
Demo account: demo Password: 123456

Docker Build

# Copy the script `fastapi_vue3_admin/start.sh` to the server and grant execution permissions
chmod +x start.sh
# Execute the script
./deploy.sh
# View images:
docker images -a
# View containers:
docker compose ps
# View logs
docker logs -f <Container Name>
# Stop the service
docker compose down
# Delete an image
docker rmi <Image Name>
# Delete a container
docker rm <Container Name>
# Backend configuration file directory
fastapi_vue3_admin/backend/env/.env.prod.py
# Frontend configuration file directory
fastapi_vue3_admin/frontend/vite.config.ts
and
fastapi_vue3_admin/frontend/.env.production
# Deployment file directory
fastapi_vue3_admin/docker-compose.yaml
and
fastapi_vue3_admin/devops/devops/nginx/nginx.conf

🔧 Models

Module	Screenshot
Login

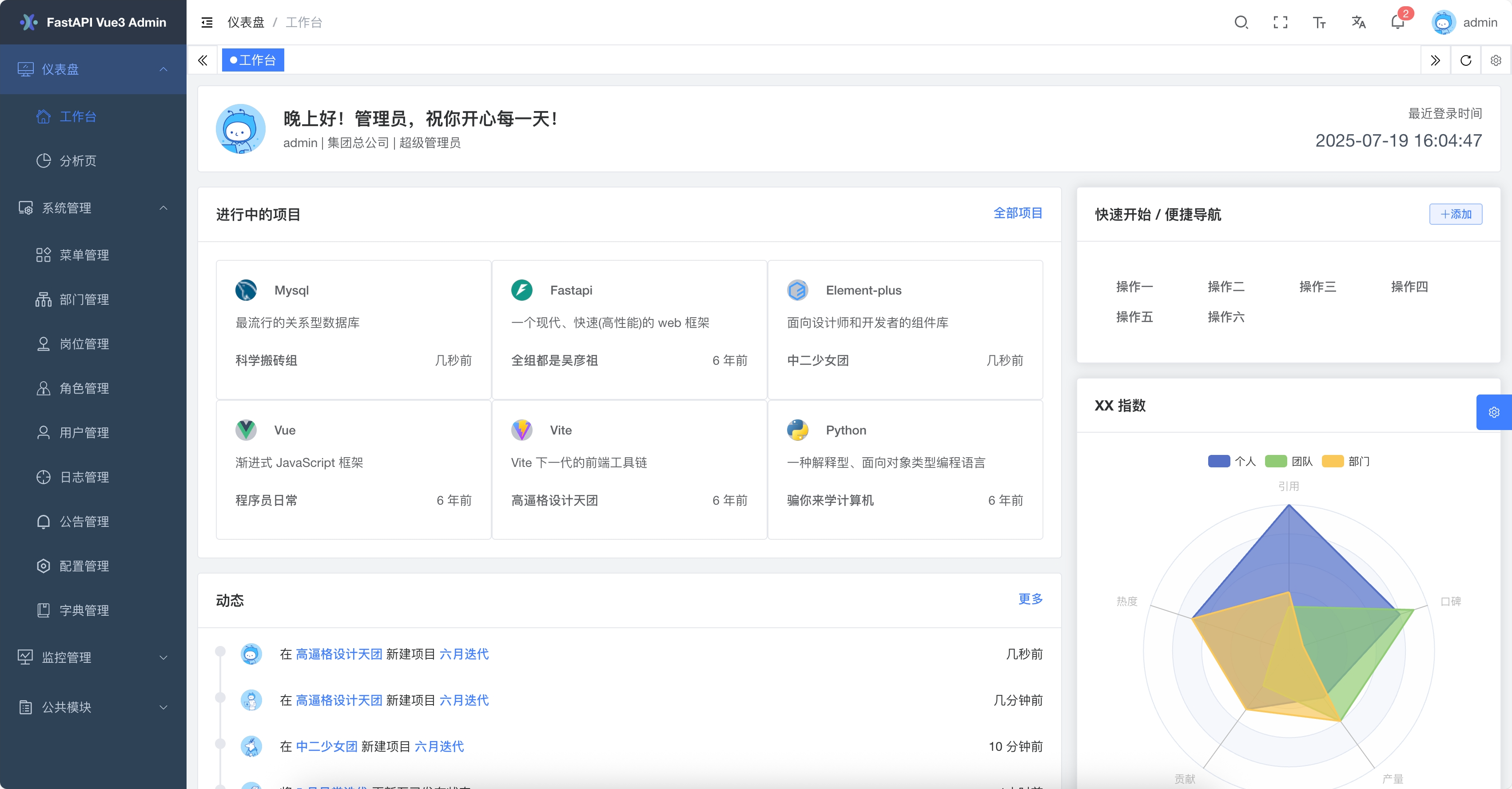

Dashboard

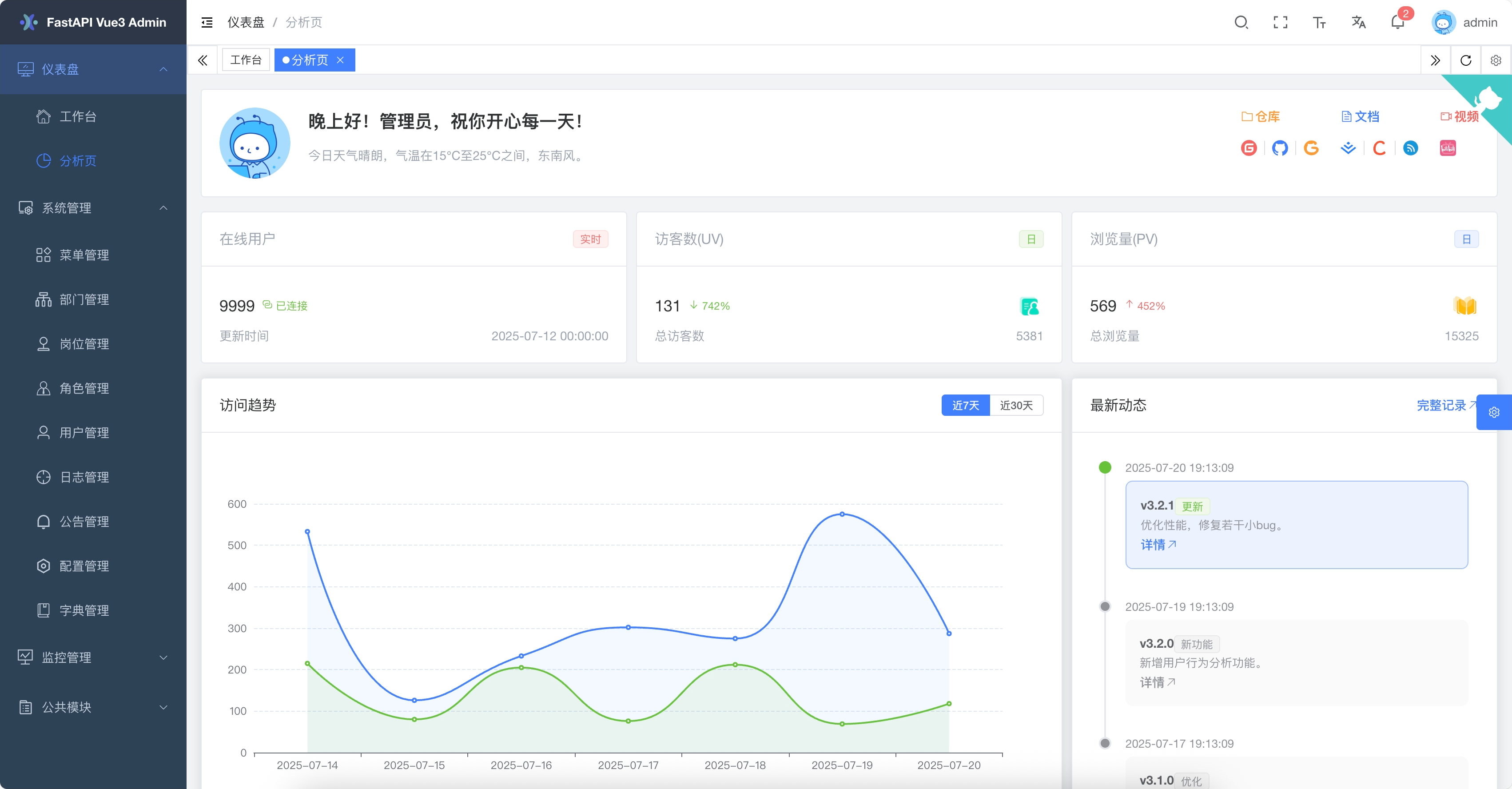

Analysis
Menu

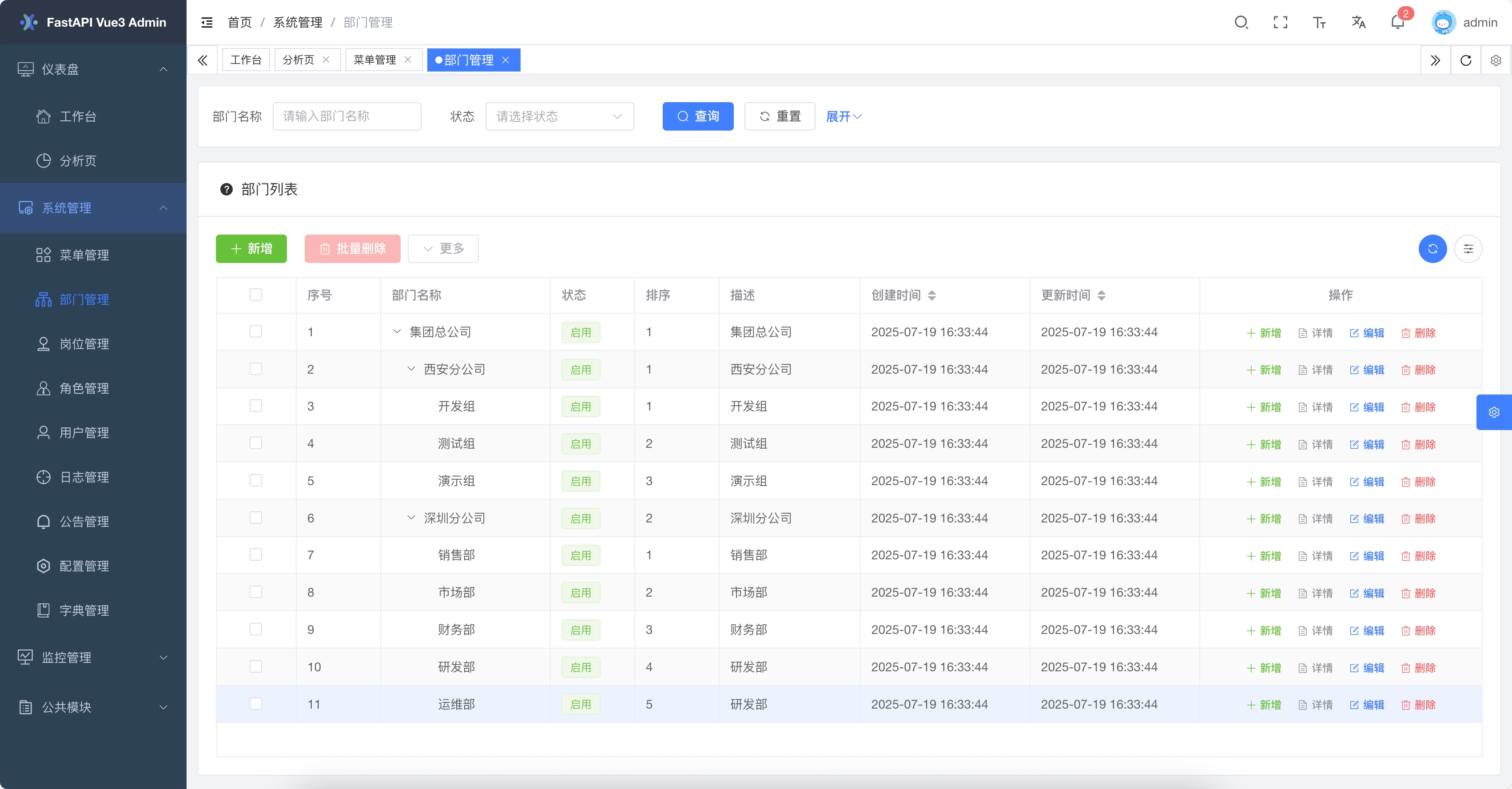

Department
Position

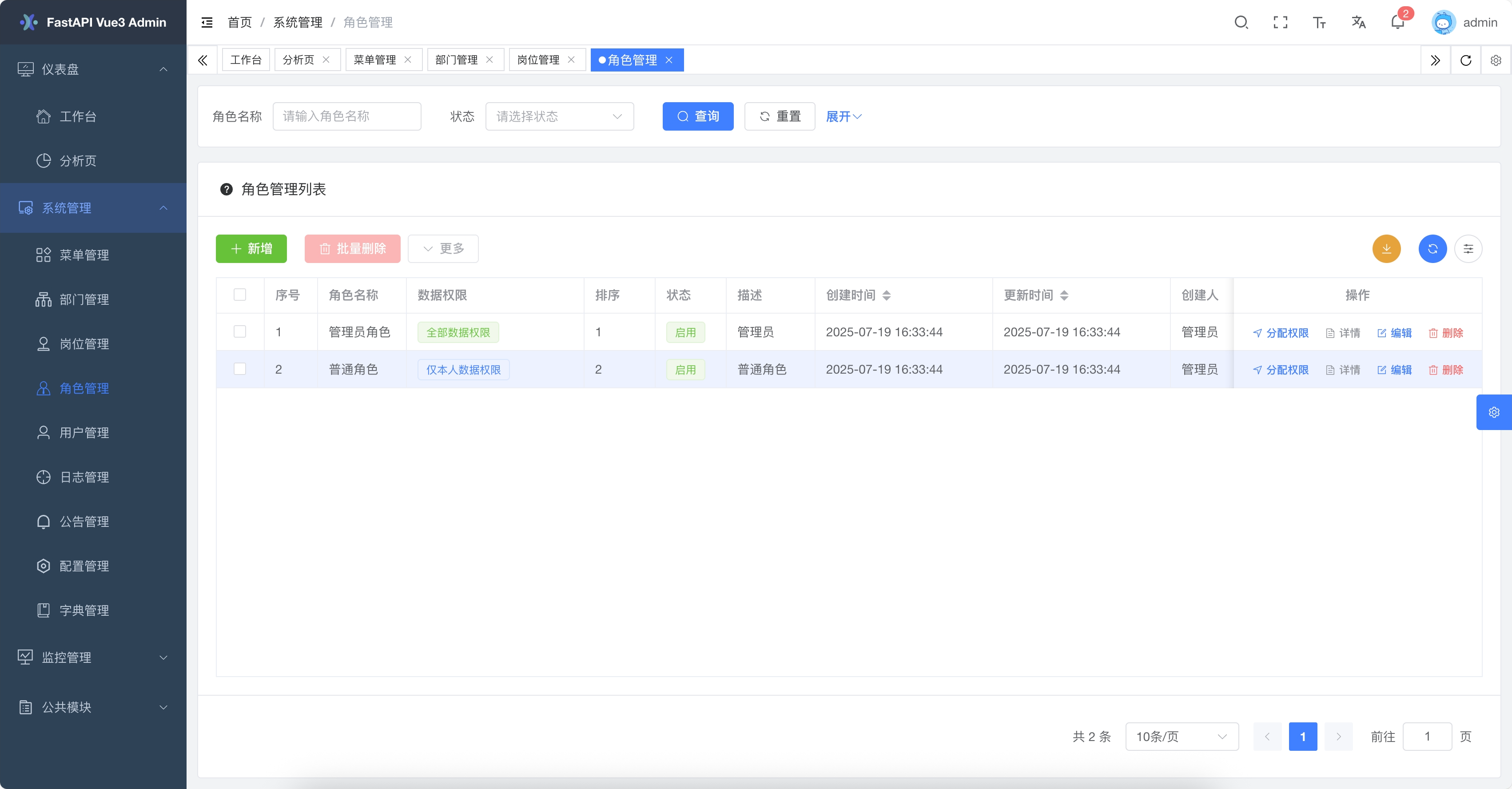

Role
User
Log

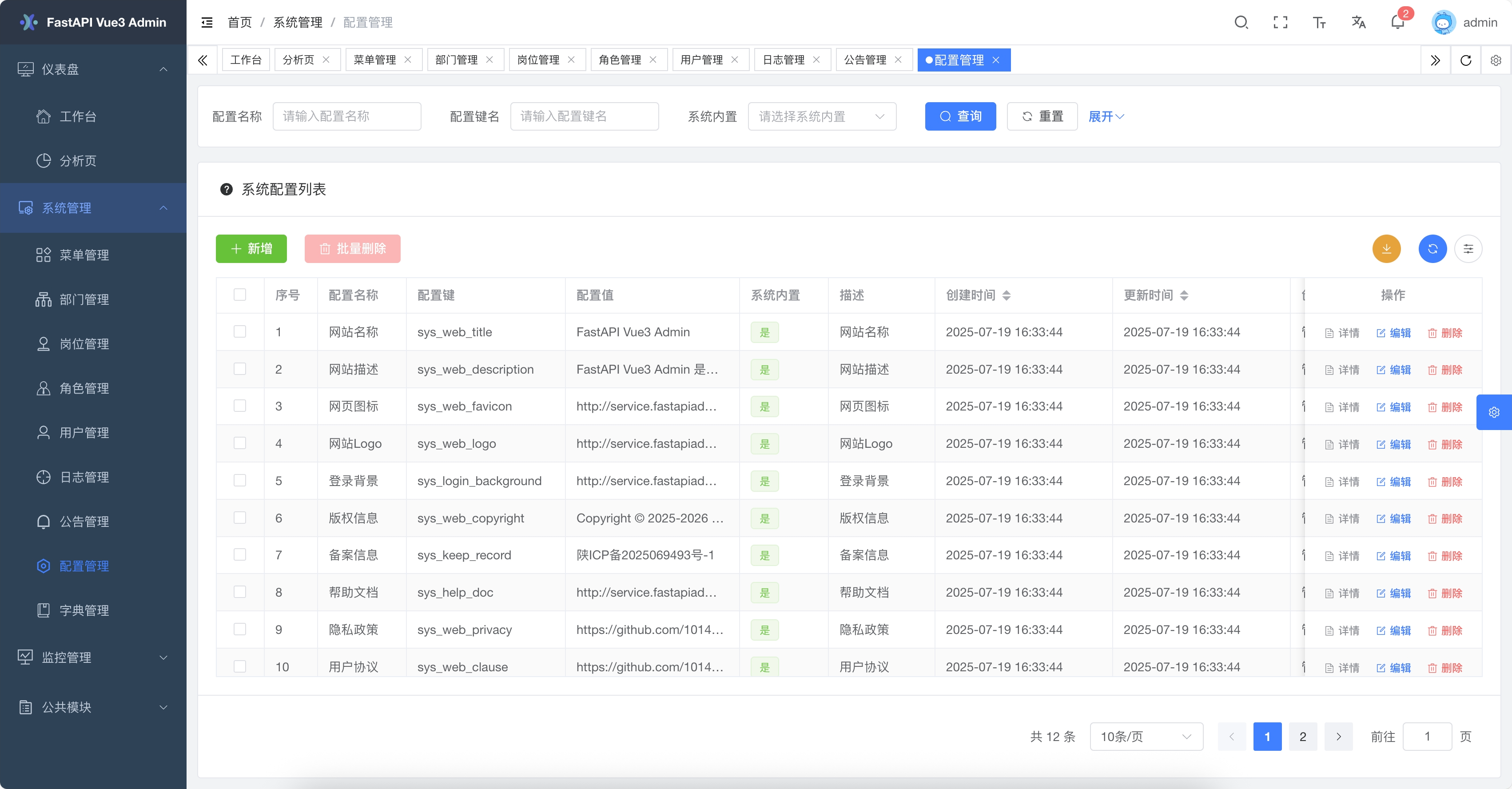

Config

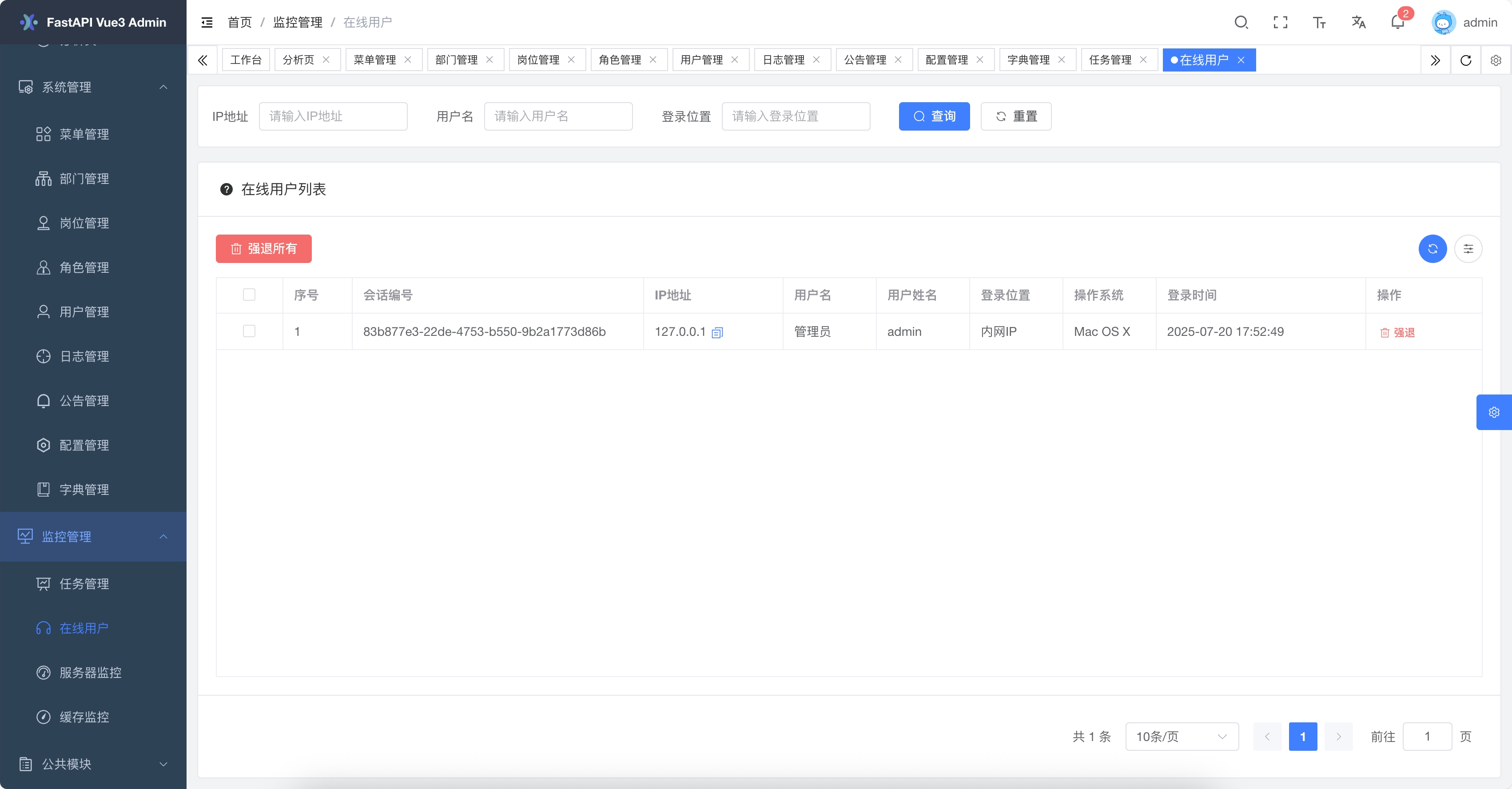

OnlineUser

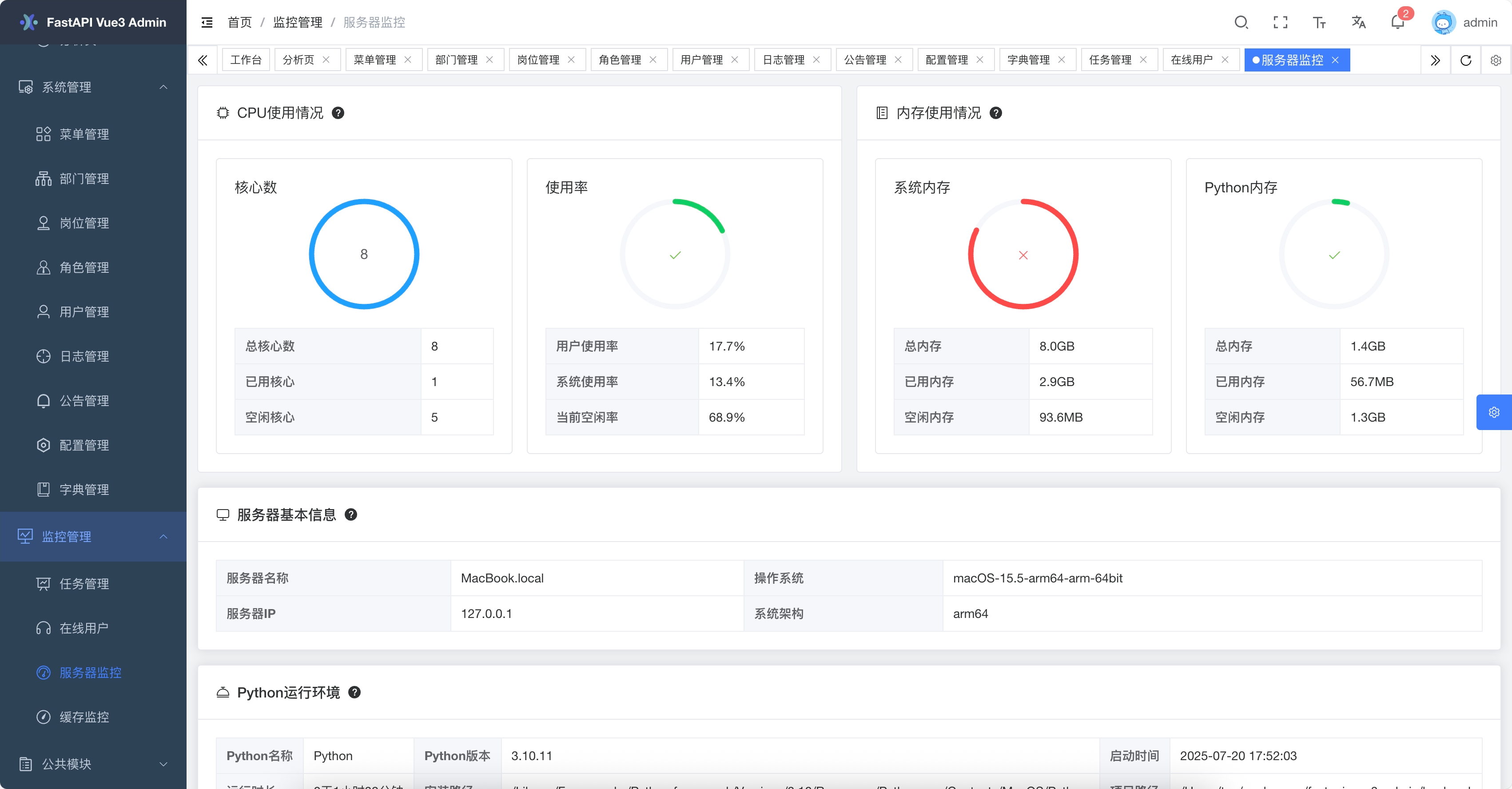

Server
Cache
Task
Dict
API Docs

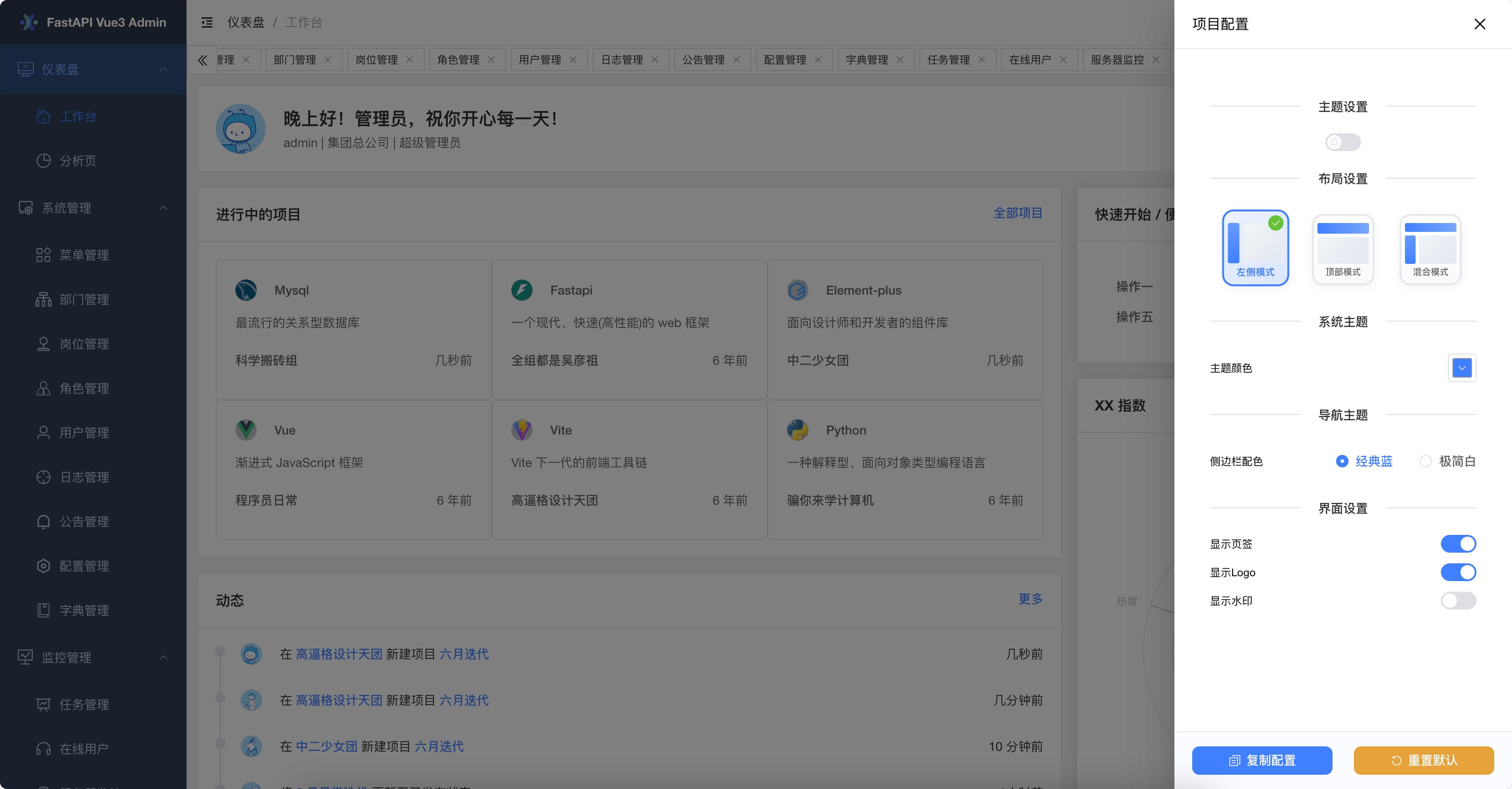

Theme
Document
Lock

移动端

Module Name	Screenshot
Login	Under development... (To be completed)

🛠️ Secondary Development Tutorial

Backend Part

Write the Entity Class Layer: Create the ORM model for the demo in backend/app/v1/models/demo/demo_model.py (corresponding to the entity class layer in Spring Boot).
Write the Data Model Layer: Create the demo data model in backend/app/v1/schemas/demo/demo_schema.py (corresponding to the DTO layer in Spring Boot).
Write the Query Parameter Model Layer: Create the query parameter model for the demo in backend/app/v1/params/demo/demo_param.py (corresponding to the DTO layer in Spring Boot).
Write the Persistence Layer: Create the demo data layer in backend/app/v1/cruds/demo/demo_crud.py (corresponding to the Mapper or DAO layer in Spring Boot).
Write the Business Layer: Create the demo data layer in backend/app/v1/services/demo/demo_service.py (corresponding to the Service layer in Spring Boot).
Write the Interface Layer: Create the demo data layer in backend/app/v1/controllers/demo/demo_controller.py (corresponding to the Controller layer in Spring Boot).
Register Backend Routes: Register the demo routes in backend/app/v1/urls/demo/demo_url.py.
Register Routes to the FastAPI Service: Register the routes in backend/plugin/init_app.py.
Add the Demo Module to the System Initialization Script: Add it in backend/app/scripts/initialize.py (if necessary, you can configure the demo menu permissions in backend/app/scripts/data/system_menu.json and backend/app/scripts/data/system_role_menus.json or from the frontend page menu).
Add the Demo Module to the Database Migration Script: Add it in backend/app/alembic/env.py.

Frontend Part

Configure the Frontend to Access the Backend Interface Address: Configure it in frontend/src/api/demo/example.ts.
Write the Frontend Page: Write it in frontend/src/views/demo/example/index.vue.

🙏 Thanks

Thanks to the contributions and support of the following projects, which have enabled the successful completion of this project:

🎨 Community

WeChat QR Code	Group QR Code	WeChat Pay QR Code

❤️ Star

If you like this project, please give it a ⭐️ Star to show your support! Thank you very much!
